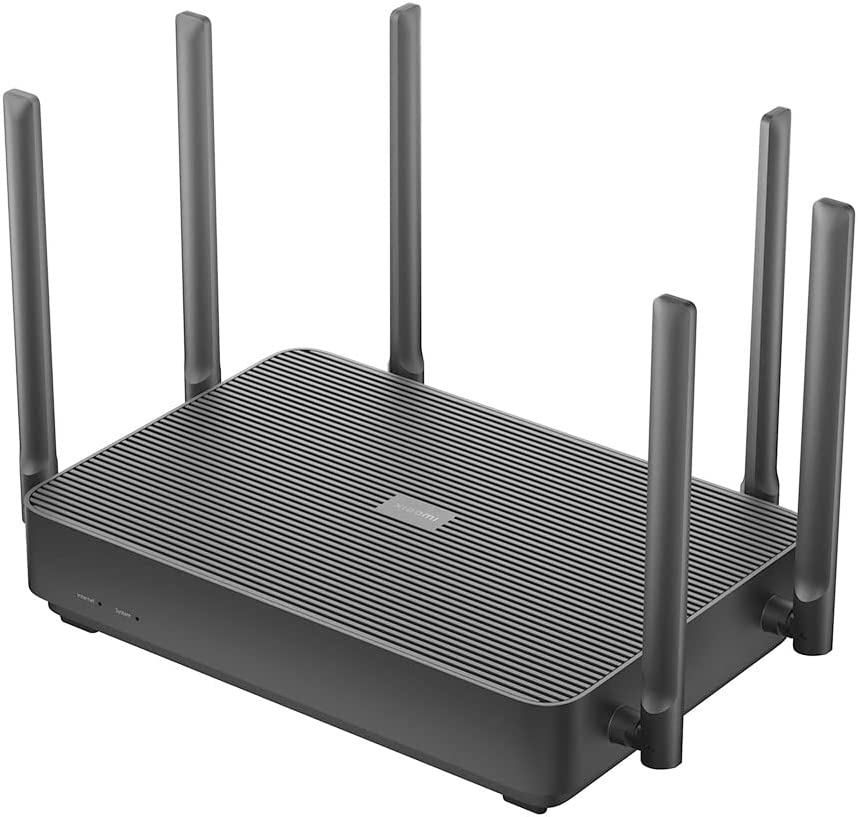

Xiaomi Router AX3200 Fast 3202Mbps Wi-Fi 6* Mesh networking support

DESCRIPTION

XIAOMI MI ROUTER AX3200 ULTRA FAST WIFI 6 MESH NETWORK COMPATIBLE

ULTRA-FAST WI-FI 6

A BRAND-NEW NETWORK EXPERIENCE

The Wi-Fi 6 (802.11ax) is the latest generation in Wi-Fi standards. Thanks to its higher transfer rates, Xiaomi Router AX3200 allows you to easily enjoy nearly twice the speed of a typical AC1200 router. The Wi-Fi 6 router significantly reduces latency and unresponsiveness in end devices, even when multiple users are using multiple devices at the same time. Glide through the new digital era with true ultra-fast network responsiveness.

DUAL-BAND UNLEASHES THE FULL POTENTIAL OF NETWORK PERFORMANCE

Xiaomi Router AX3200 offers both 2.4GHz and 5GHz. The two bands do not interfere with each other, and have a combined theoretical wireless speed of 3202Mbps maximum. Enjoy ultra-fast Internet access, stable signal coverage, high-speed usage, seamless HD videos and large-scale online gaming.

MU-MIMO TECHNOLOGY*SMOOTHER INTERNET ACCESS FOR MULTIPLE USERS

MU-MIMO technology allows the multiple antennas of your Xiaomi Router AX3200 to provide network connection to multiple devices simultaneously. If a router is a highway, this one comes with extra lanes that both increase transfer rates and prevent unresponsiveness in your devices.

OFDMA TECHNOLOGY*

TAKE CONTROL WITH EFFICIENT TRANSMISSION

OFDMA technology allows your router to send data to multiple end devices with just one transmission, where a traditional router would need to send multiple transmissions. OFDMA makes for more efficient transmission and reduced latency so you can use multiple devices at the same time, and enjoy instant responsiveness when online gaming, whether that be large-scale or via your smartphone.

XIAOMI MESH NETWORKING*

FULL-HOME COVERAGE WITH WI-FI 6

Set up mesh networks comprised of multiple routers with compatible Xiaomi mesh router products. No need to worry about the layout of your home, this system is built to work in all kinds of complex layouts and provide full-home signal coverage. The wireless signal roams between each router seamlessly, allowing you to use your network however you please.

MEDIATEK FILOGIC800

OPTIMUM NETWORK STATUS AT ALL TIMES

Features dual-core quad-threaded processors with a single-core clock speed of up to 1.35GHz. With overall performance improvements, your Internet connection is more enjoyable and diverse.

SMART LIVING WITH 256MB OF MEMORY

A large memory means you can connect up to 128 devices*. Enjoy the technology-enabled benefits of your router with smooth, stable network connections across multiple devices.

BEAMFORMING TECHNOLOGY

DIRECTIONAL ENHANCED SIGNAL FOR GREATER COVERAGE

Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance. The router can strengthen the Wi-Fi signal for the corresponding direction, improving quality and stability, and expanding the effective range.

Hardware configuration

Processor

MediaTek Filogic800 Dual-core A53 1.35GHz CPU

Memory: 256MB

2.4GHz Wi-Fi

4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps)

5GHz Wi-Fi

4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

Antennas: External omnidirectional antennas

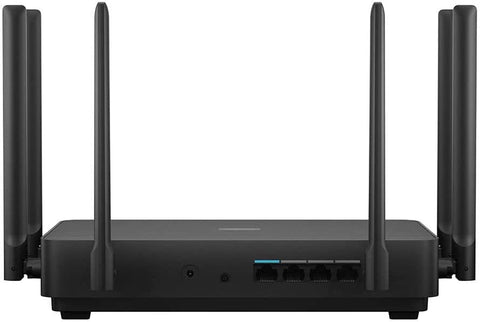

Total ports

10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1

10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3

LED indicator light: 2 lights, incl. System indicator × 1, Internet indicator × 1

System reset button: ×1

Mesh networking button: ×1

Power input port: ×1

Protocol standards: IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

Wireless specifications

Dual-band: 2.4GHz, 5GHz

Modulation

11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),

64QAM(48/54Mbps)

11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM.

11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.

11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.

Software specifications

Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT

Wi-Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption

Management applications: Supports Web, Android, iOS

Working Environment

Working environment Temperature: 0-40℃

Operating humidity: 10%-90%RH (non-condensing)

Storage temperature: -40-70℃

Storage humidity: 5%-90%RH (non-condensing)

Package contents

Xiaomi Router AX3200 ×1

User Manual ×1

Power cord ×1

Network cable ×1
